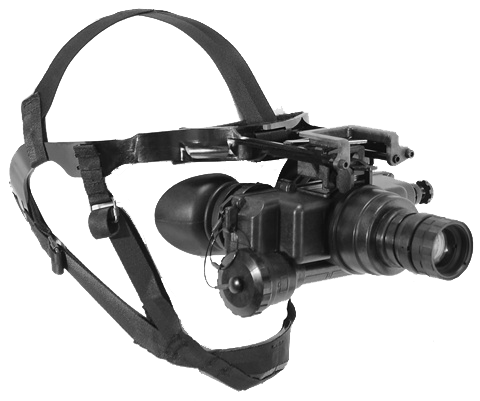

PVS-7 is the MIL-SPEC, “single-tube, dual-eye” Night Vision Goggle system with optional enhancements compared to the conventional PVS-7 unit. Designed for army, law enforcement, search & rescue professionals, it is the preferred choice for conducting critical ground-based and maritime operations during night time. Using the best coated optics to enhance night time performance as well as the top-grade I2 tubes the PVS-7 from GSCI outperforms all other night vision goggles available on the professional market today.
KEY FEATURES
¨ Dual-Eye Observation
¨ Universal Night Operations Tool
¨ Optional External Power Port
¨ Optional Manual Gain Control
¨ Stow Safety Feature
¨ Extended Range Observation
¨ High Situational Awareness
¨ Suits Multiple Applications
¨ Preferred choice of NATO forces
- Autogating
MAIN APPLICATIONS
¨ Defence
¨ Coast Guard
¨ Security
¨ Border Patrol
¨ Surveillance
¨ Reconnaissance
TECHNICAL DATA
Optical Magnification
1X
Objective Lens Focal Length
27mm
Field of View (FOV)
40° (30° for Gen 2+ Models)
Focusing Range
0.25m .. Infinity
Diopter Adjustment Range
-4 .. +4
Built-In IR Illuminator
Yes, 850nm
IR-On LED Indicator
Yes, Concealed into FOV
Interpupillary Adjustment Range
53mm .. 72mm
Automatic Light Overload Shut-Off
Yes, Built-In
Bright Source Protection
Yes
Low Battery LED Indicator
Yes, Concealed into FOV
Pull-Action Switch
Positions: Off / On / Instant-IR / IR
Stow Safety Feature (SSF)
Optional
Automatic Flip-Up-Off Feature
Yes
Automatic Brightness Control
Yes
Power Source
2pcs AA Batteries
External Power Port
Optional : Accepts 4VDC .. 15VDC
Manual Gain Control
Optional
Battery Life on 2pcs AA
Up to 40 Hours
Operating Temperature
-40°C .. +50°C
Warranty
7 Years, Limited
Export
Worldwide**
** Canadian Export Permit Required.
Batteries not included
IMAGE INTENSIFIER TUBES: GEN 2+, GEN 3, ‡ ECHO, ‡ 4G
Autogating and White Phosphor options are available with selected tubes. Contact us for more details.
‡ECHO and 4G are the registered trademarks of Photonis Technologies S.A.S.
STANDARD EQUIPMENT: WHAT’S IN THE BOX
1
Dual-Tube Night Vision Goggles with Bayonet or Dovetail Bracket Installed
2
Rubber Eyecups (2Installed on the device) + 2 Spare
3
Demist Shield (2pcs)
4
Sacrificial Window
5
Non-Flip-Up Head Gear PHG-7
6
AA Battery Extension Adapter (Installed on the device)
7
Rubber Daytime Filter with Training Hole (Installed on the device)
